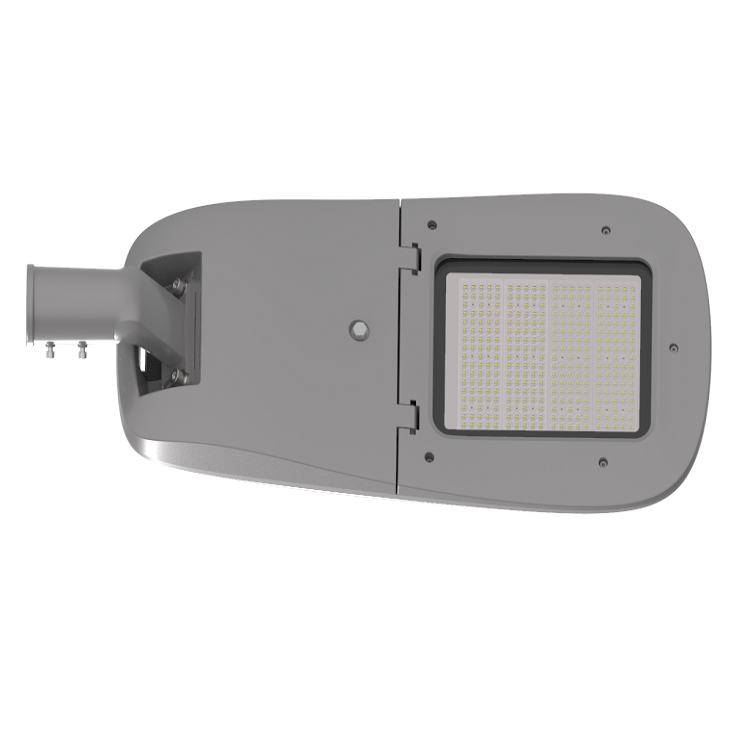

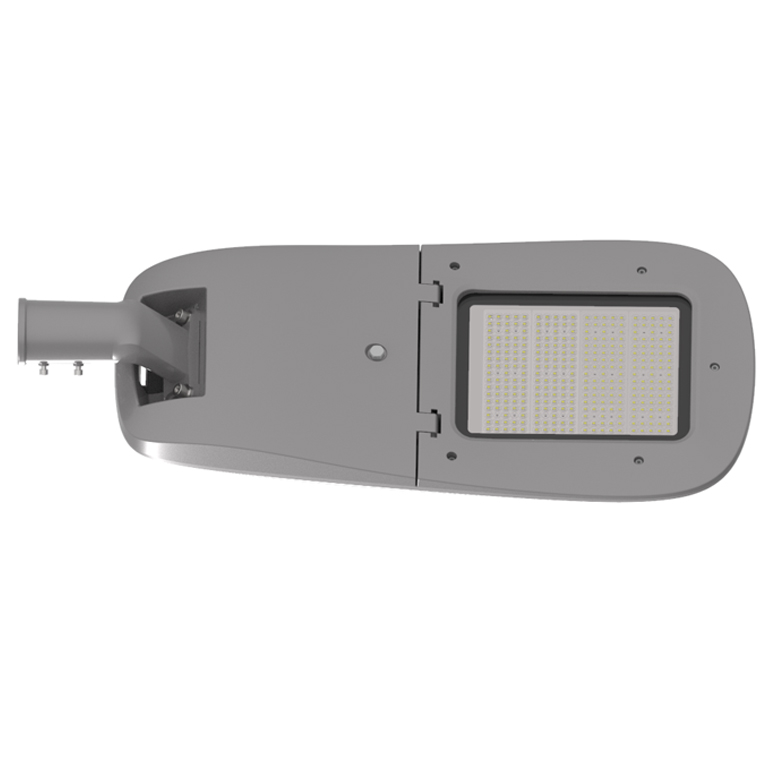

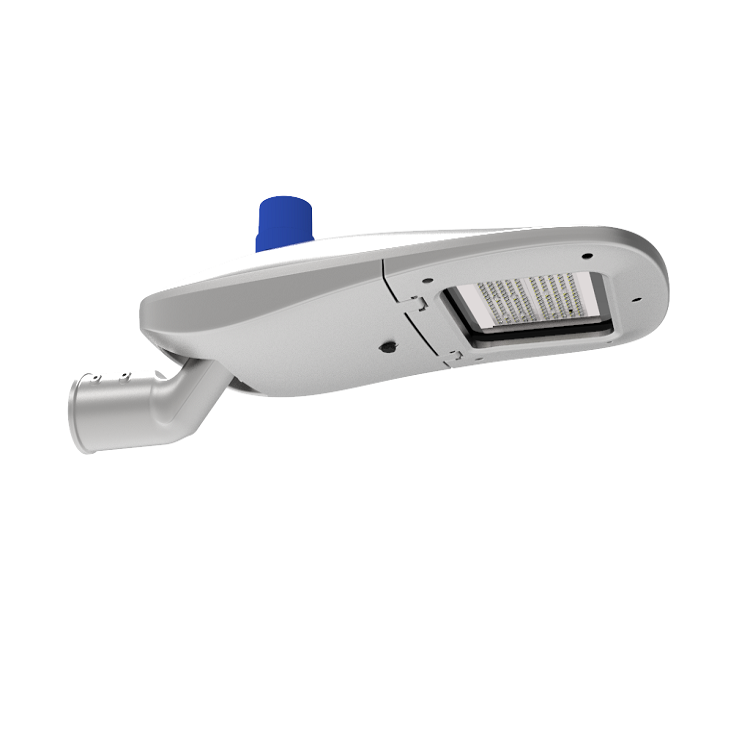

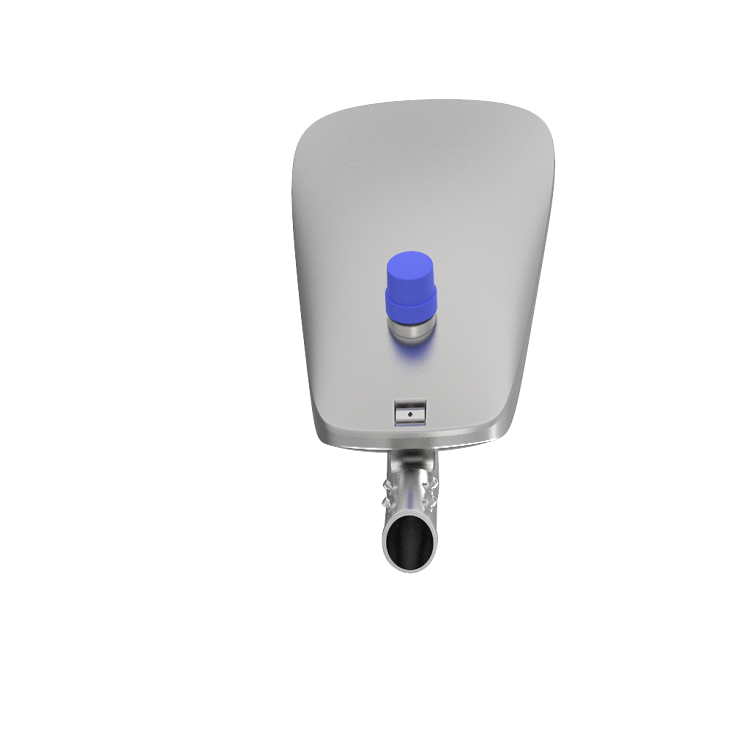

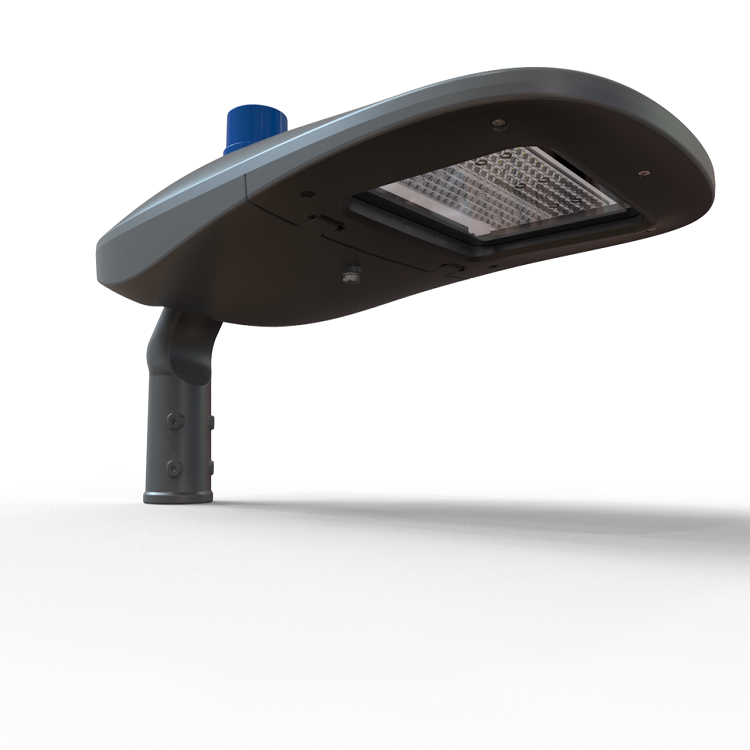

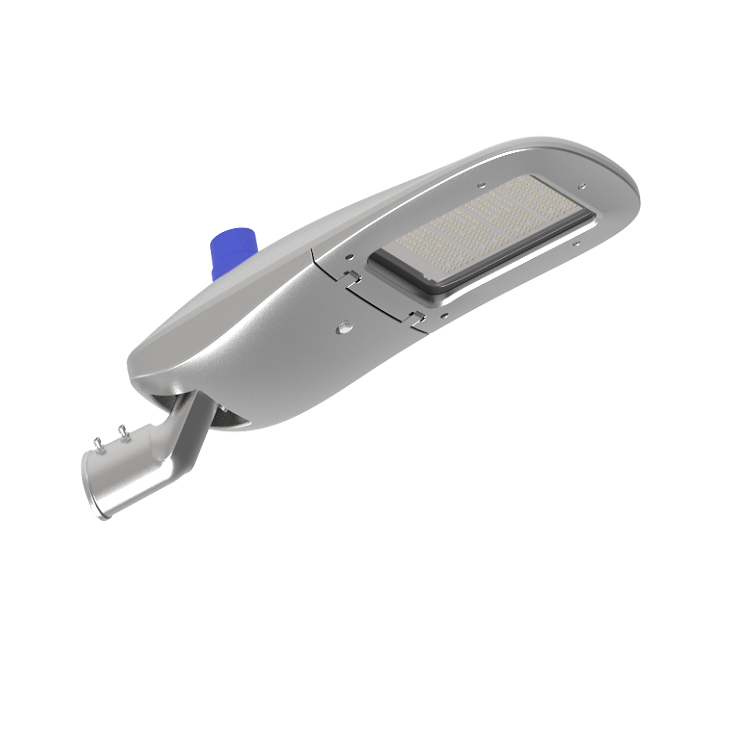

SH series 30W-200W street light
SH series 30W-200W street light SH series 30W-200W street light SH series 30W-200W street light SH series 30W-200W street light SH series 30W-200W street light

SH series 30W-200W street light

DOWNLOADS :
Product Description
Lamp Body Material30W/60W/80W/100W/120W/150W/180W/200W
FunctionPhotocell;Motion Sensor; SPD;Smart Control by Lora/NB-lot
IP RatingIP65
IK RatingIK10
CertificationENEC TUV CE
PF>0.95
Color Temperature(CCT)2200K-7000K
LED Light SourceSMD 3030 5050
Beam angleType II III IV V optional
Input Voltage(V)AC100-277V; 480V
Product model

SH340 for 30W/60W/80W/100W



Lamp Luminous Efficiency(lm/w)130LM/W for standrd; 150LM/W for high lumen
CRI (Ra>)75
Working Temperature(℃)-40 - 45
Working Lifetime(Hour)50000(100000 Optional)
Warranty(Year)5 (10 years warranty optional)
ApplicationHighway/parking lot/park/street/Park/square/garden
Colorblack/Brown/Sliver/White
Power SupplyMeanwell Driver and SOSEN Driver
Weight

SH340 series: NW=7.2KG; GW=7.8KG

SH365 series: NW=11KG;GW=12.2KG

Product dimensionSH340 series:711*310*165MM
SH365 series:851*366*177MM
Packing size

SH340 series:385*748*195MM

SH365 series:412*890*210MM
