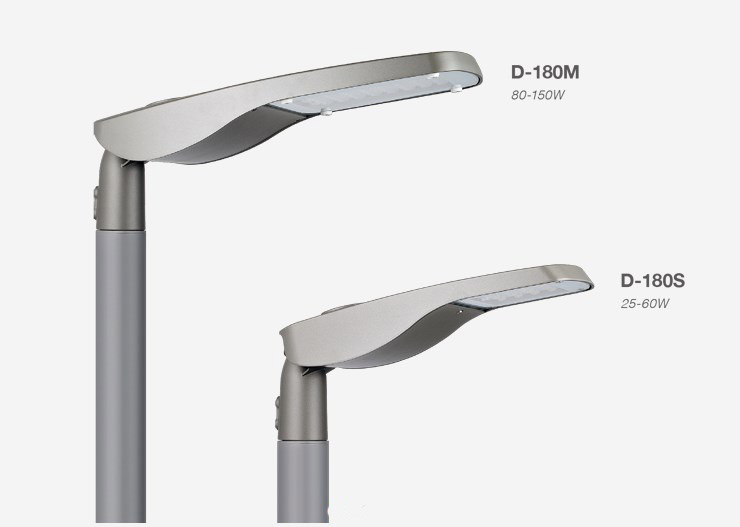

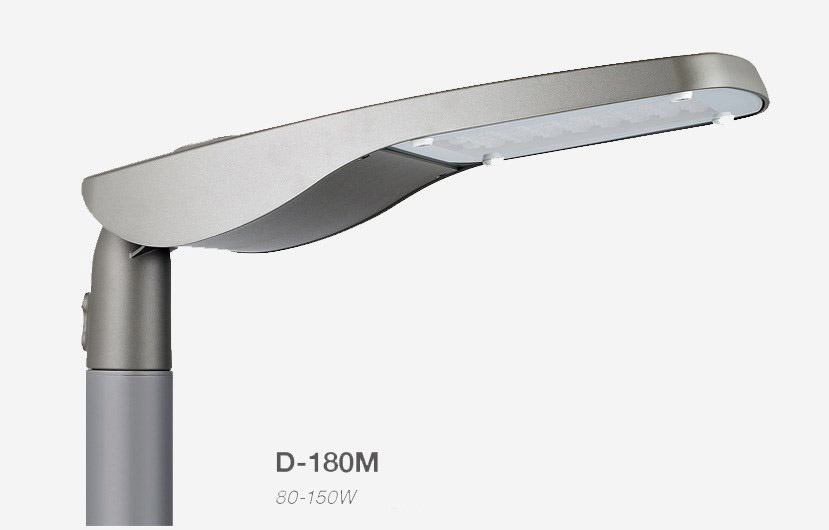

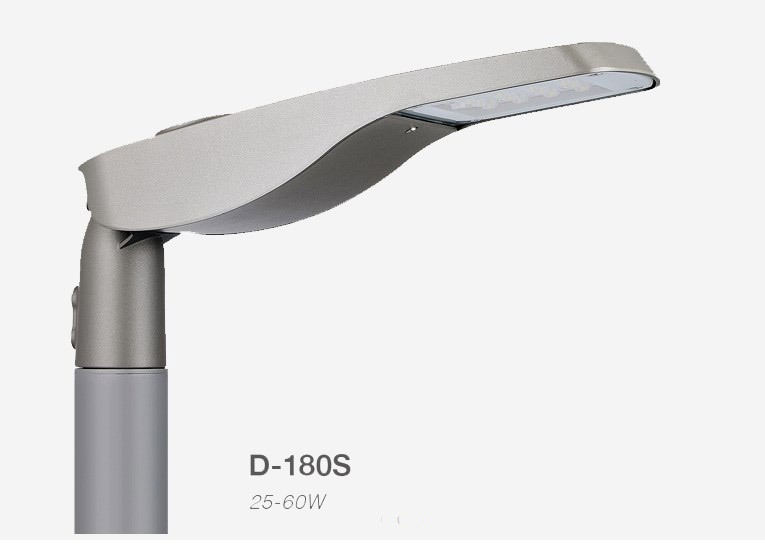

D-180 Series
D-180 Series D-180 Series D-180 Series

D-180 Series

DOWNLOADS :
Product Description


  • Die-casting aluminium body, super white tempered glass.

  • Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.

  • High quality LED chips, Driver with 0-10V/DALI/programmed be options, and with surge protection up to 20KV.

  • The lighting cover is opened downwardis, with special customized opening screw.

  • Top and side fixing, angle can be adjustable, installation tube diameter Ø48/Ø60/Ø76mm.

  • Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.

  • No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.

  • Street lighting control system for use with smart LEDs. It can be compatible with remote management system.

  • All external screw are in 304 stainless steel.

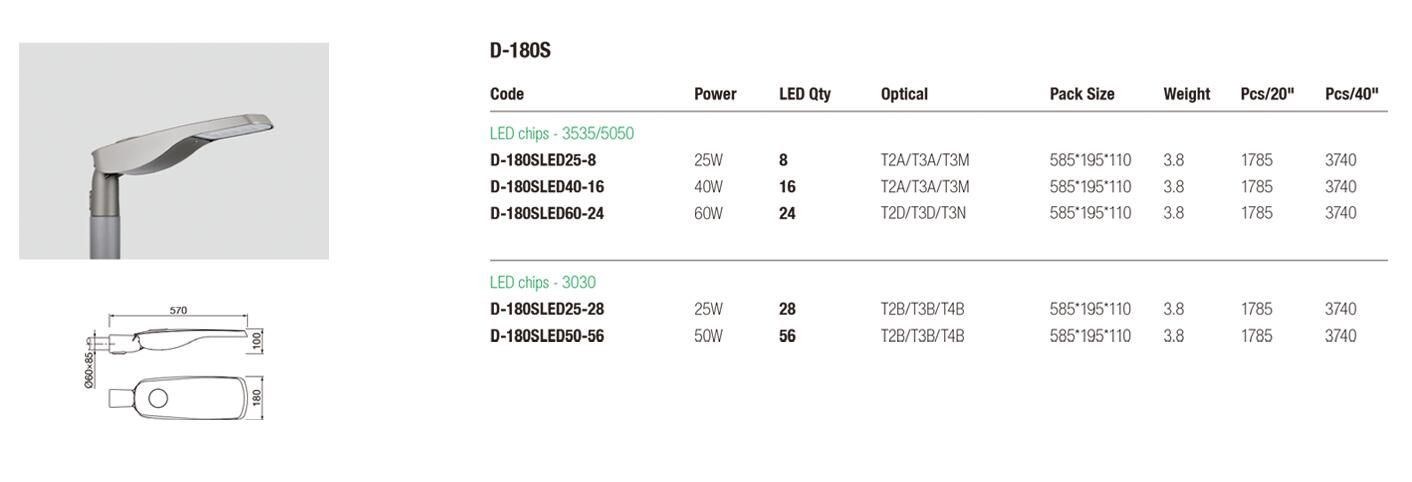

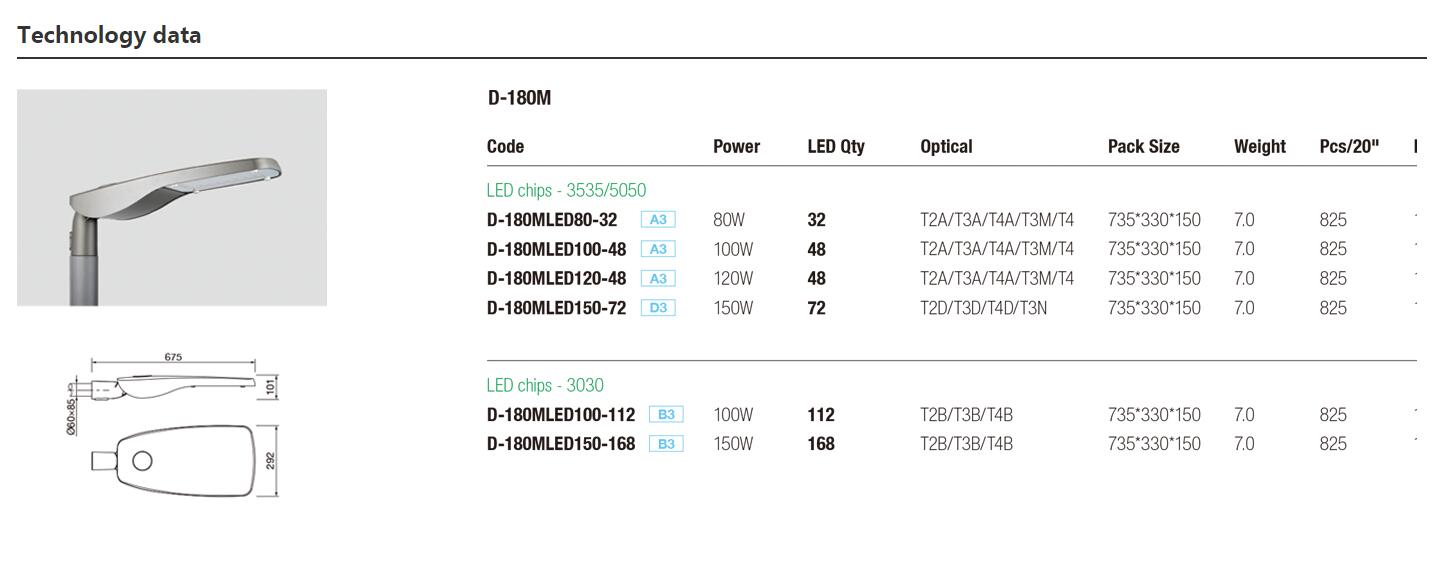

Product power:                   25-150w

Light flow lumens:              2500-22500LM

Number of size:                  3 size version

Colour temperature:          3000K/4000K

IP Grade:                             IP66

IK Grade:                             IK08

Fixing tube diameter:       φ76/φ60/φ48m
