Body: Optical system:
Gear plate: Finishing:

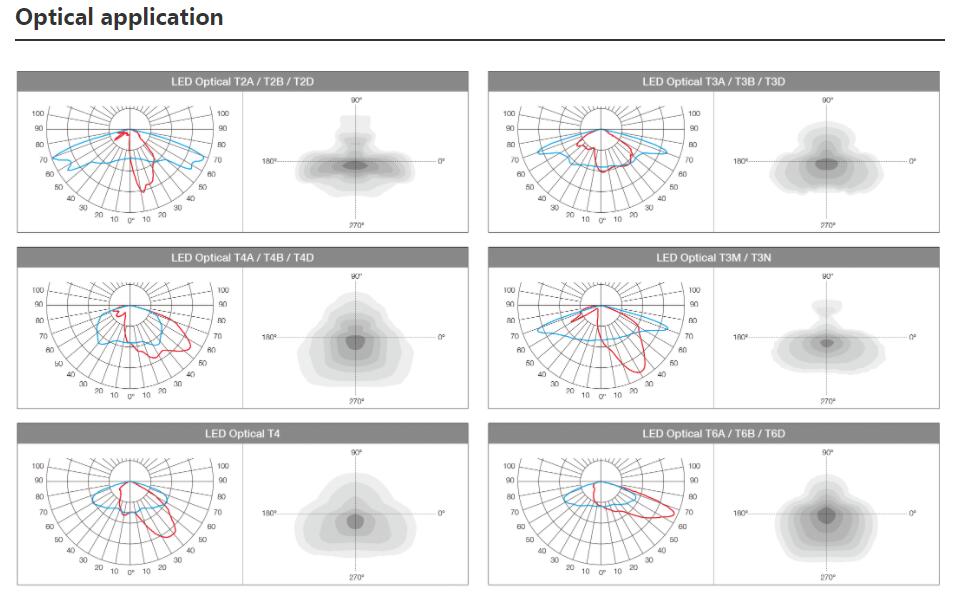

Assembling height: Fixing: | Die-cast aluminium. Anodized PP plastic reflector and special light distribut-ion lens, diffuser with super white tempered glass. Aluminium plate, special screw fastening. Surface anti-ageing electrostatic spray processing, super resistance to corrosion. 4-7m. Top or side fitting Ø60mm, angle can be adjustable. |
| Model | D-170S1LED30-16 | D-170S1LED40-24 | D-170S1LED60-24 | D-170SLED40-24 | D-170SLED60-32 | D-170SLED80-32 | D-170SLED100-48 | D-170MLED100-48 | D-170MLED120-64 | D-170MLED150-64 | D-170MLED180-64 |
| Power | 30W | 40W | 60W | 40W | 60W | 80W | 100W | 100W | 120W | 150W | 180W |
| light source | CREE-XTE | ||||||||||
| Driver | Meanwell | ||||||||||
| IP IK | IP66 IK08 | ||||||||||
| Input Vlotage | 100-240VAC/50-60HZ | ||||||||||
| Size | 525*255*105mm | 625*290*105mm | 780*325*105mm | ||||||||
| warrranty | 5 years warrranty | ||||||||||

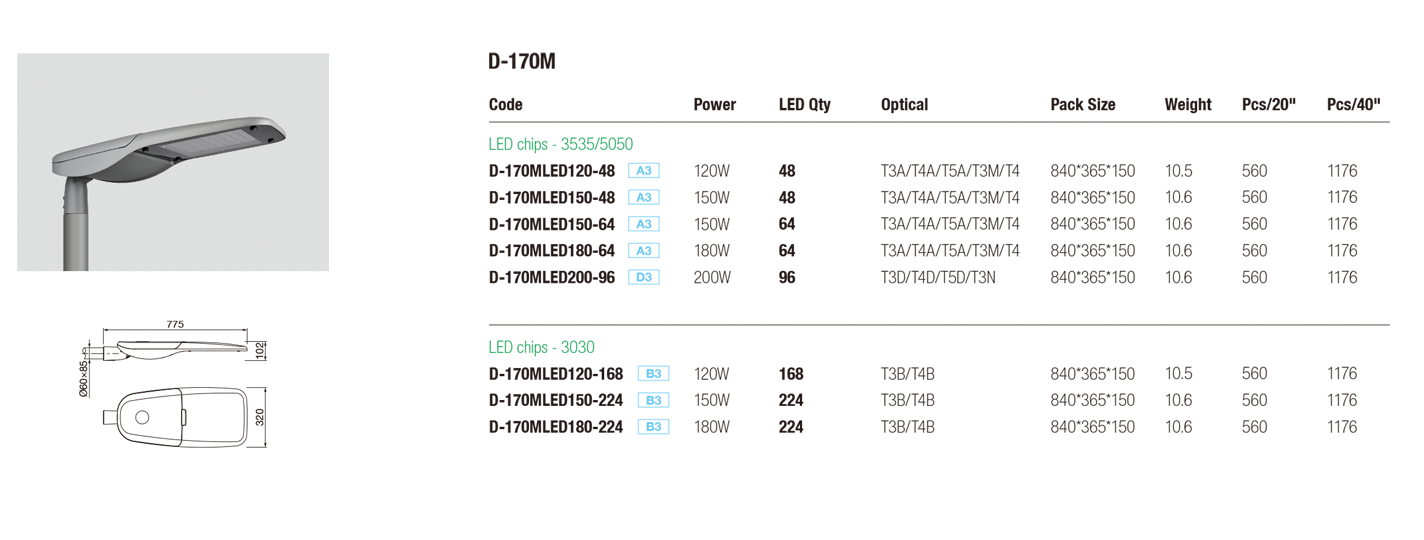

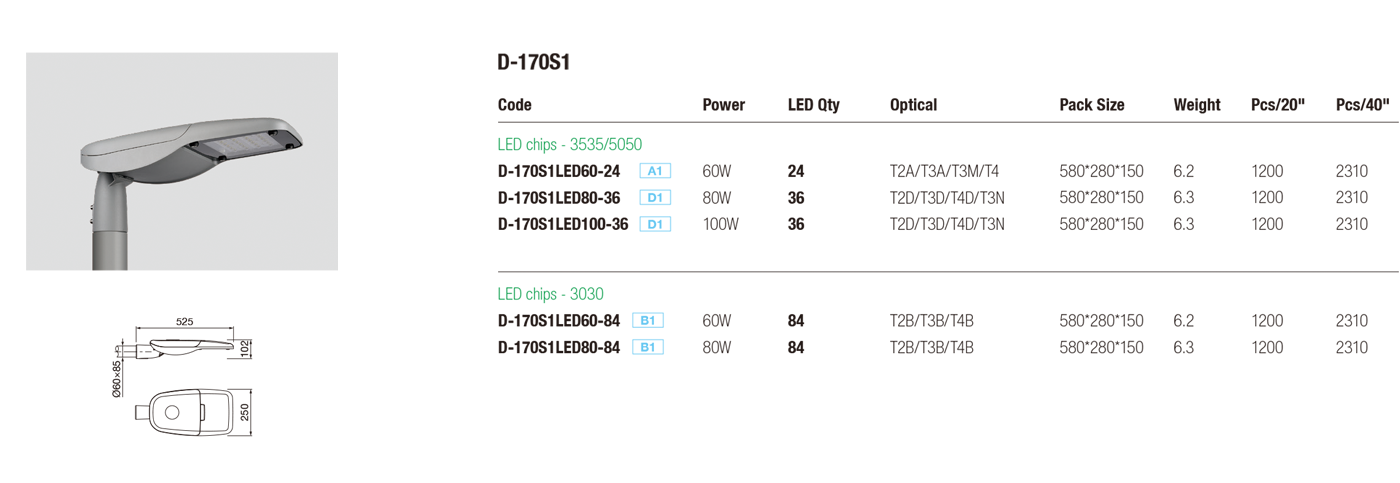

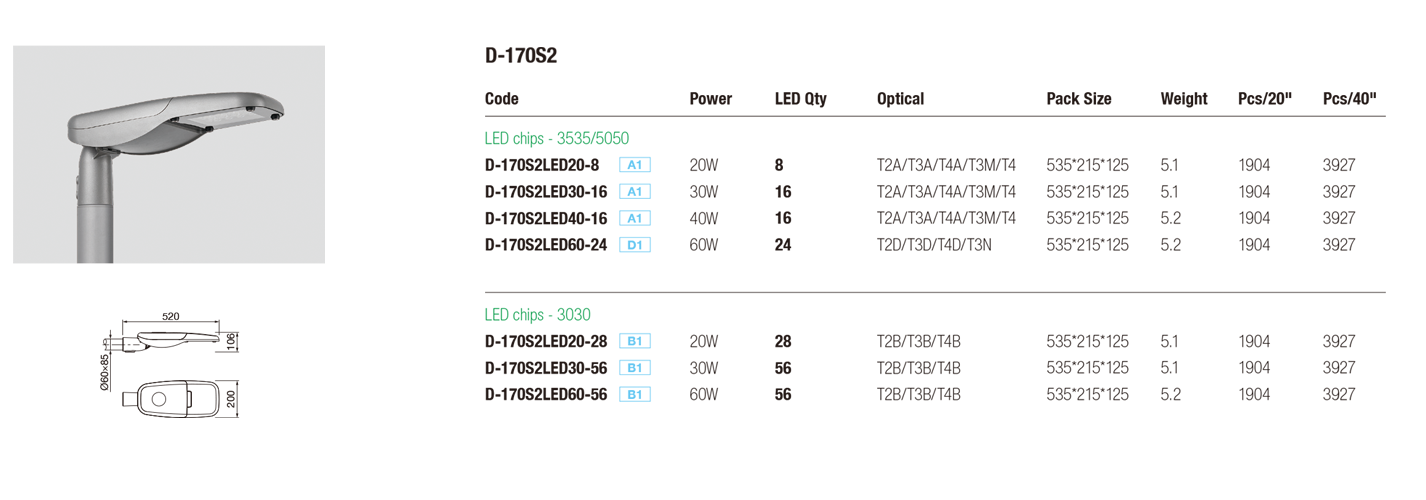

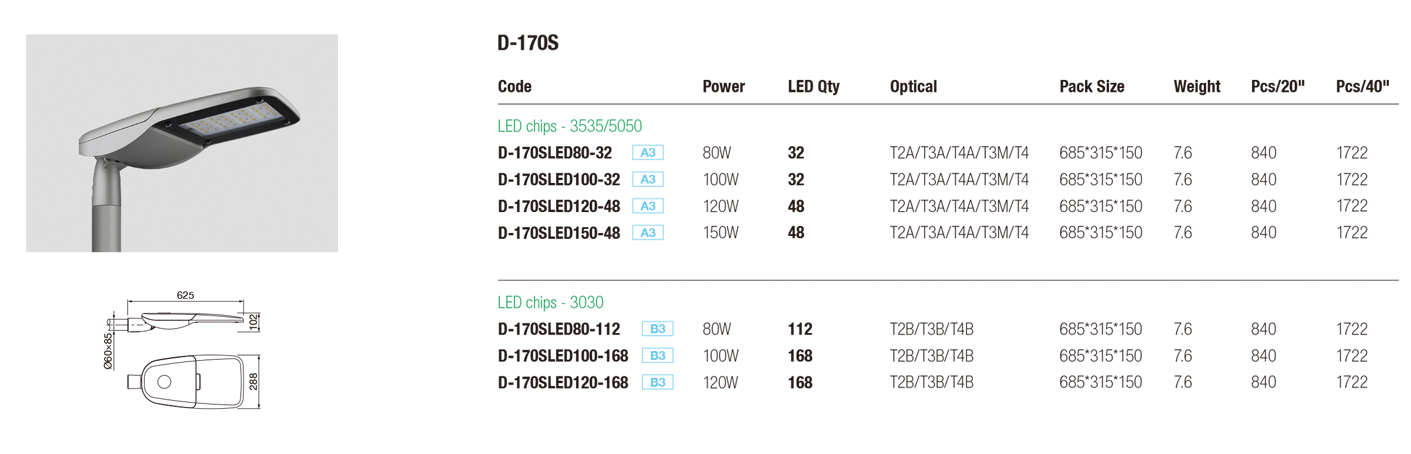

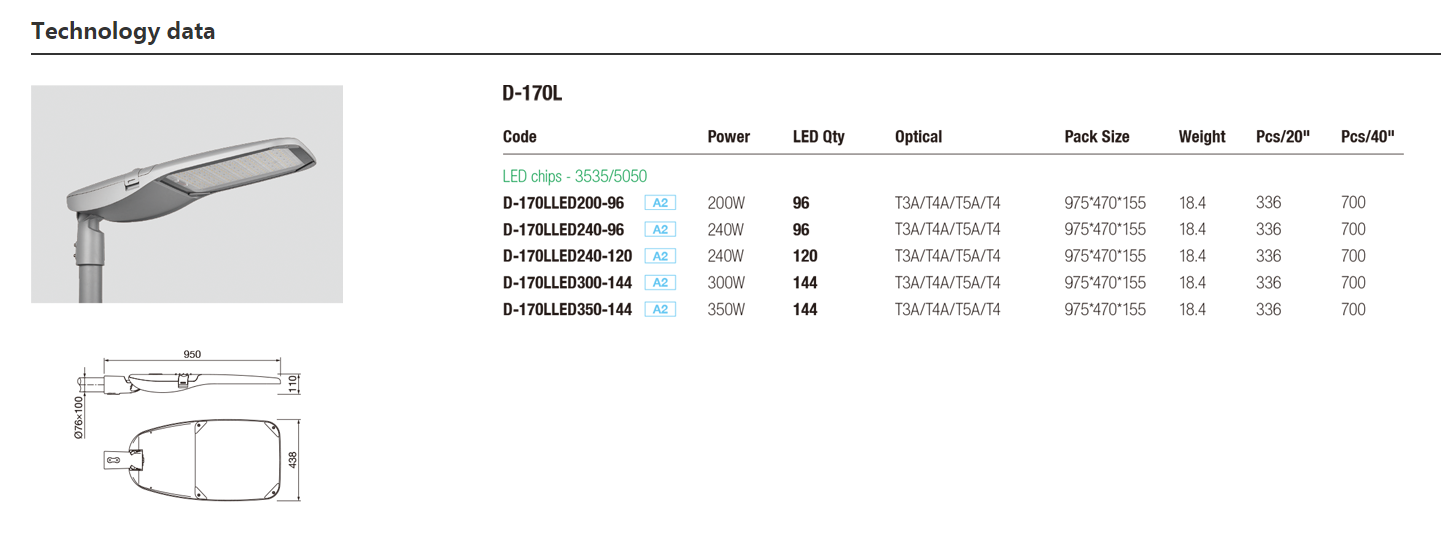

Specification sheet:
