1.wattage : 50W-240W
2.Lumens : 140LM/W-150LM/W
3.CCT : 3000K 4000K 5000K 5700K
4.Driver : Meanwell
5.Light Source : Lumileds 3030
6.Certficates : ENEC TUV CE CB SAA RoHS IK10 IP67 test
Flame Retardan Salt Spray test, LSTMT
LM79 LM80 TM21
Features
Aluminum (ADC12) die-casting molding;
The surface is treated with black spray powder added with metal powder specially for outdoor use, which can increase the concave and convex feeling of frosting and expand heat dissipation; area Lens surface frosting treatment, suitable for 5050/3030 lamp beads, different lenses for different environments;
The back of the lens groove prevents light leakage;
Meet the 48-hour qualification requirements of salt spray test (GB/T 2423.17-2008);
Meet the requirements of continuous exposure for 28 days for solar radiation test (GB/T 2423.24-1995);
Comply with ROHS standard;
Waterproof integrated shell, waterproof grade up to IP67;
Products through a number of certification, ETL CE CB SAA ENEC IP67 IK10 salt spray test;

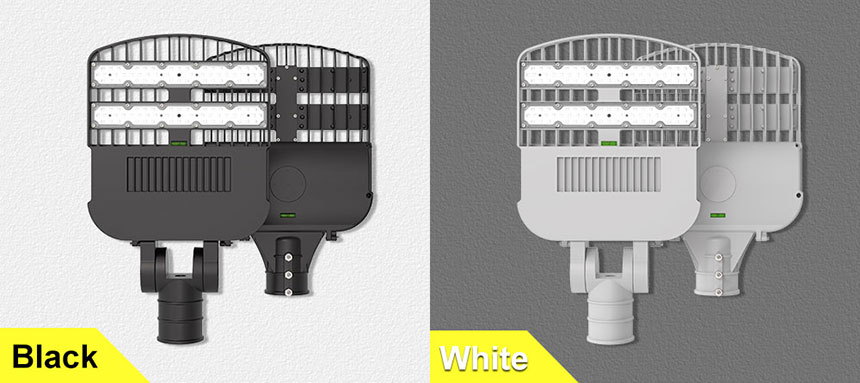

Selectable color

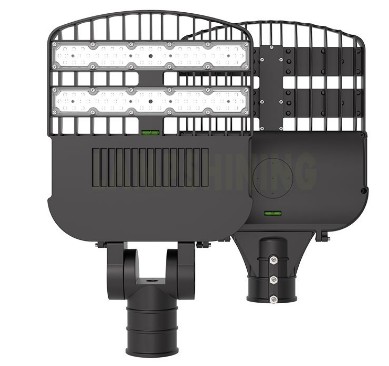

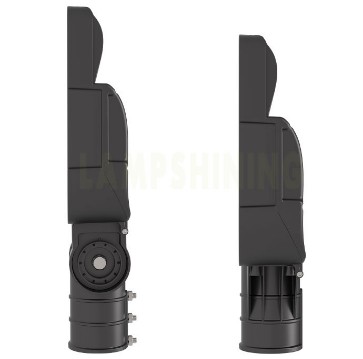

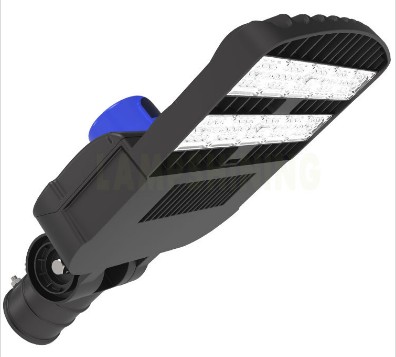

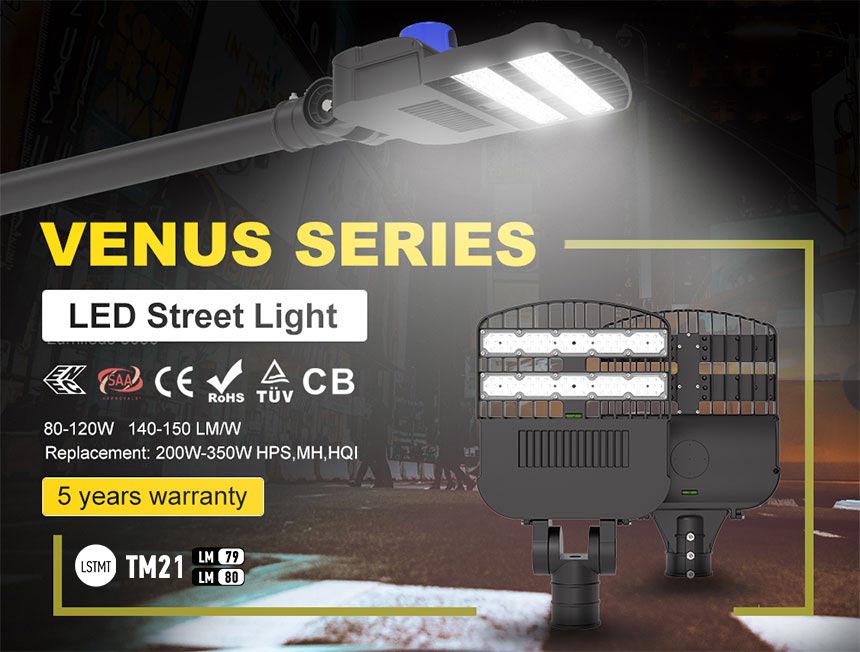

Venus LED Street Light Specification
Wattage | 50-120 watt | |
Lumens | 140-150LM/W | |
Light Source | Lumileds 3030 | |
Input Volt | 100-277VAC | |
Driver | Meanwell | |
IP & IK Rating | IP67, IK10 | |
Arm Dia | 60 mm | |
Beam Angle | 80*155 degree | |
Color Temp | 3000K 4000K 5000K 5700K | |
Lifespan | > 50,000 hours | |
Replacement | 300-400W HPS,MH,HQI | |
Certficates | ENEC TUV CE CB SAA RoHS IK10 IP67 test Flame Retardan Salt Spray test LSTMT LM79 LM80 TM21 |

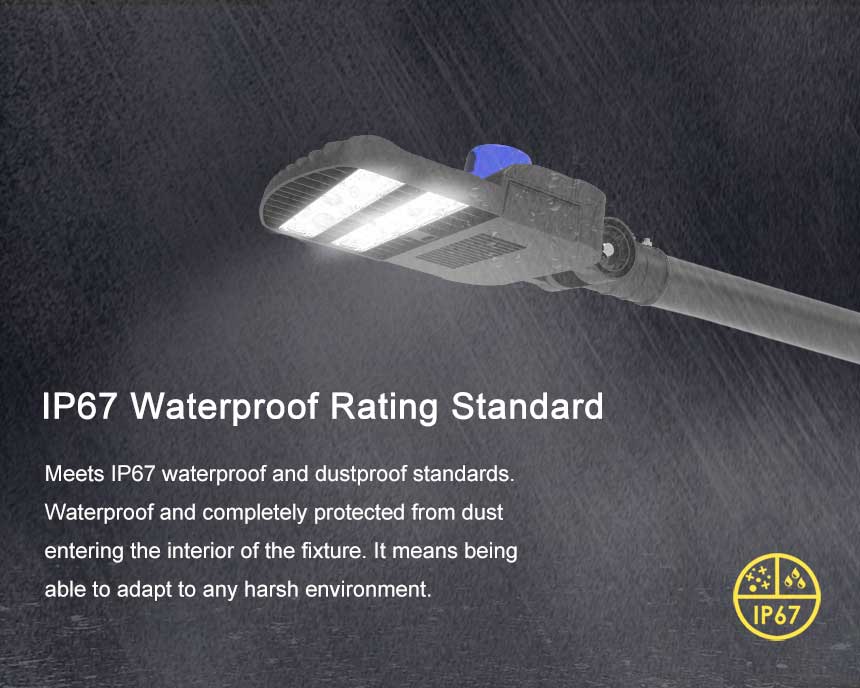

IP67 Waterproof
Optional accessories

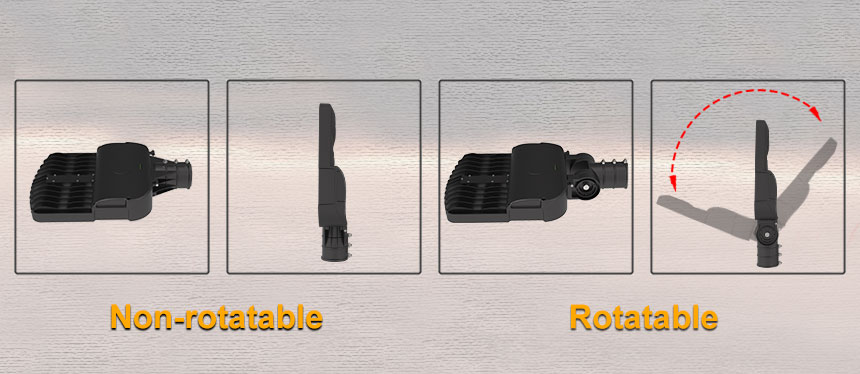

1.Optional Rotatable Arm. Depending on the usage scenario, you can choose a non-rotatable or rotatable sleeve.

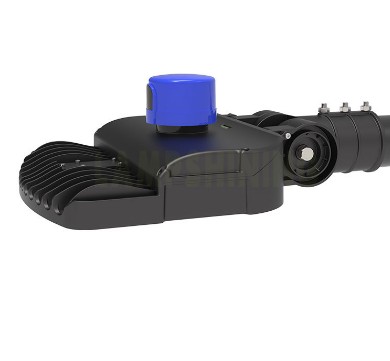

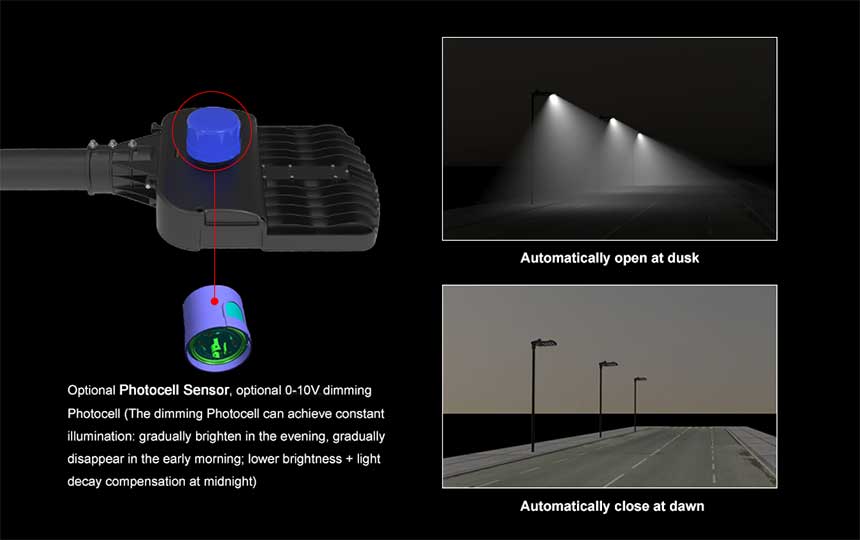

2.Optional Photocell, optional 0-10V dimming Photocell. The Venus Street light Photocell integration controls the illumination of the fixture by detecting surrounding ambient light. Photocell base comes pre-installed, lock cap included in package when shipped and ready to apply during assembly, Twist-Lock Photocell automatically turns lights On at Dusk and O ffat dawn.

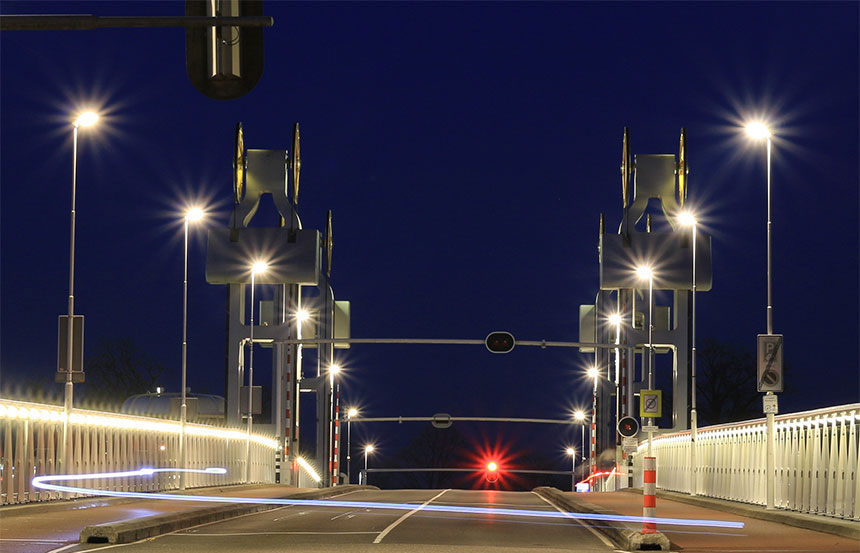

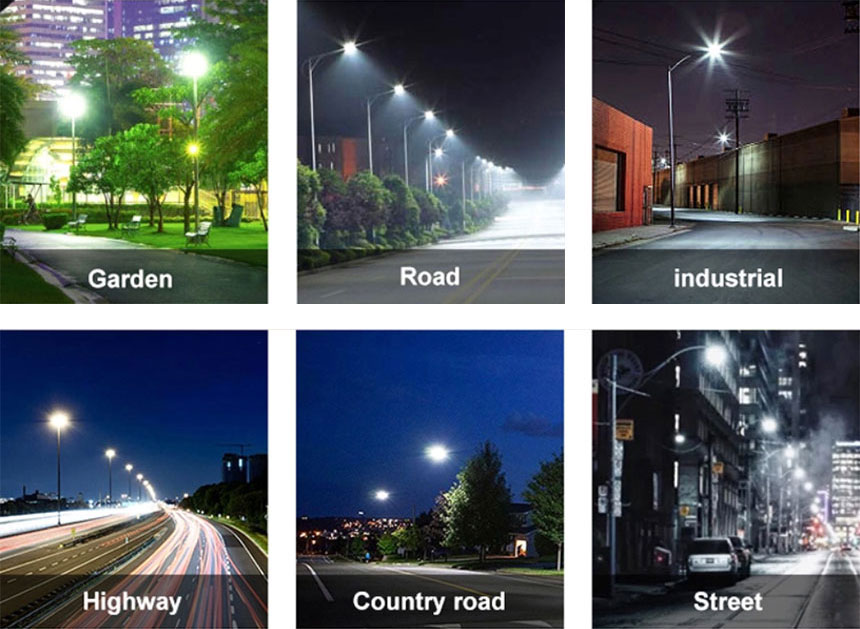

Applied to
new venus series led street lights are suitable for street lighting, area lighting, highway lighting, parking lot lighting etc. Depending on the area, you can choose 50-240w led street light to replace 125w-750w HPS, MH,HQI.
