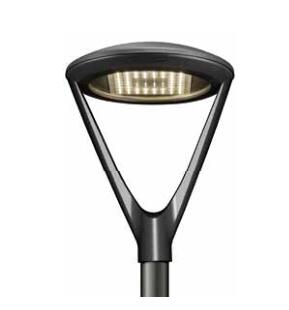

Taurus’s distinctive aesthetics is conceived to satisfy any architecture firm and environmental
planner.Which is Elegant, pure, clear and timeless that redefines and modernizes the shapes and edges of the city centre and historical districts street lighting.
Super-quality materials used in the Taurus and faultless manufacturing excellence delivers exceptional and reliable performance with minimal maintenance for many years.
Perfectly engineered optical systems and full luminaire precise sizing design, enabling all parts and components in Taurus working efficiently, securing the most reliable package over lifetime and beyond, maximizing its performance and granting colour stability.
| Model | YT-27A |
| Light source | SMD LED Module |
| Color temperature | 4000K as standard. Optional 2700K, 3000K & 5000K & 5700K. Amber LED available |
| Color stability | 3 or 5 MacAdam steps for all standard LED colors |
| Power (W) | 20-100W |
| Luminous Flux(lm) | 2100-11000 lm |
| Luminaire efficiency | 105-110 lm/w |
| Lumen Maintenance (L70) | ≥ 100,000 hours |
| Lumen Maintenance (L90B10) | ≥50,000 hours |
| Constant lumen output (CLO) | as optional |
| Optics Material | PC |
| Optics Cover | Tempered Glass |
| ULOR (%) | 0% |
| Spigot diameter | steel Cord |
| Control inputs | 0-10V / DALI as optional |
| Eletrical class | class I / class II |
| Color | RAL7024 as standard (RAL or AKZO Future colors available) |
| IP rating | IP66 |
| IK rating | IK08 |
| Operating temperature range | -40°C＜Ta≤50°C |
| LED module thermal protection | as optional |
| Driver thermal protection | yes |
| Surge protection | 10KV / 20KV as optional |
| Certifications | CE CB |
| Material | ADC12 / Lower copper contents |
