40W-120W Garden light
40W-120W Garden light 40W-120W Garden light 40W-120W Garden light 40W-120W Garden light 40W-120W Garden light

40W-120W Garden light

Product Tags :
Product Attributes :

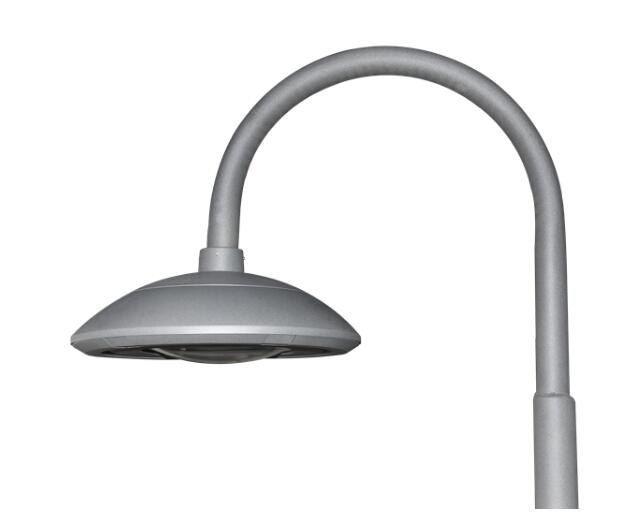

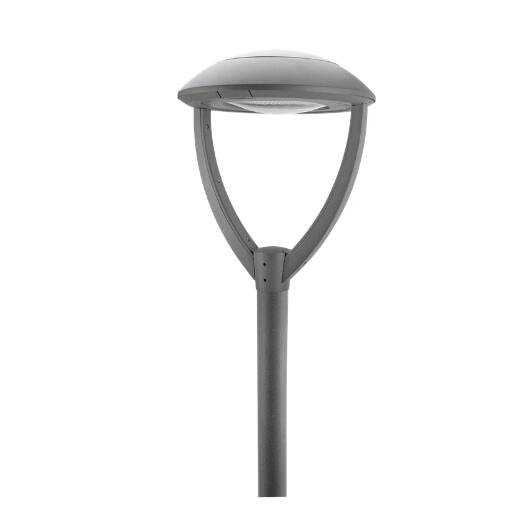

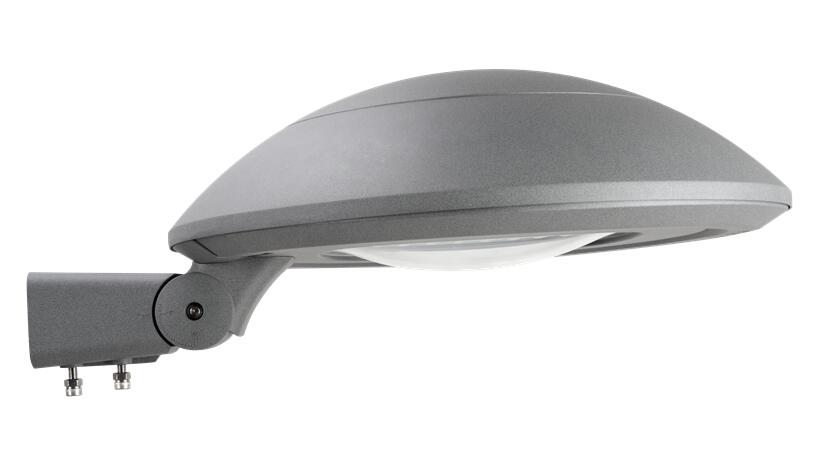

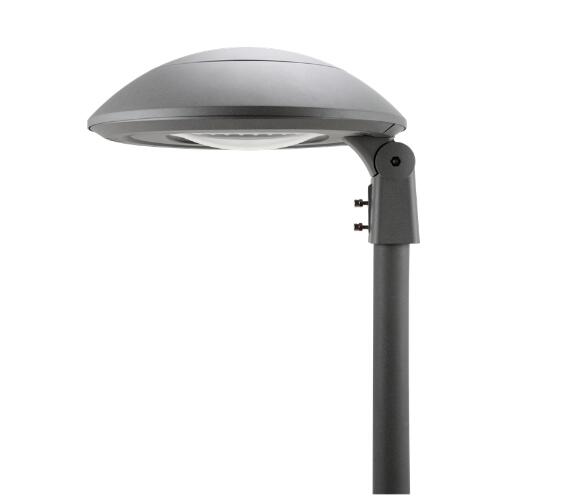

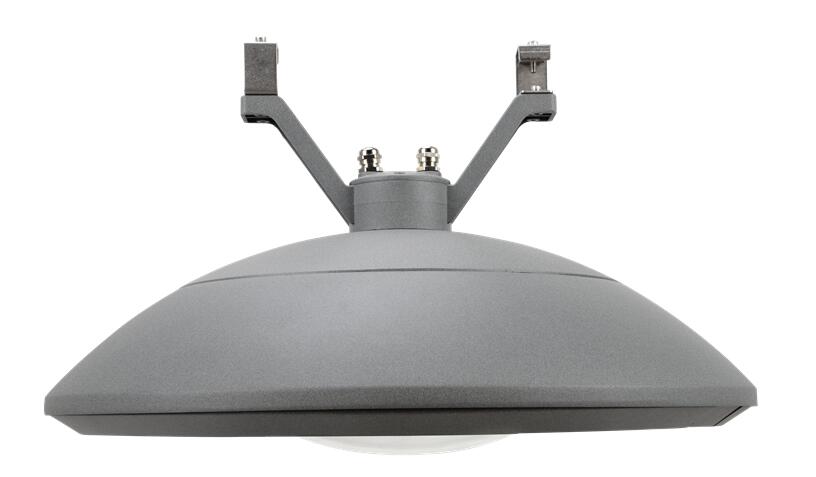

- Essence series is an excellent street lighting solution for urban areas of important architectural value,

a smart and versatile design of 4-in-1 installation, post-top mounting, bracket side entry mounting

or suspended mounting.

- Equipped with high-quality electrical components, long lifetime is assured. Tool-free design and

power switch-off device, enables easy, safe and minimal cost for maintenance. Efficient system could

reduce energy consumption and to create a more attractive urban living environment and visual

comforts for public and residential areas.

- With patented housing design and range of optics, Essence series luminaire is also a perfect choice for project oriented usage.


Product Description

Specifications:

Model

SL58A
SL58B

SL58C

SL58D

Driver

Meanwell (Inventronics optional)

Other brand of driver(upon request)

Light Source Integral LED Module Electrical

Class I or Class II

Input Voltage: 90-305V AC/ 50-60Hz, 10KV/20KV SPD

Power automactically switch off when opening

Power

40W/60W/80W/10W/120W

(other power upon request)

Dimming

Dali

1-10V

PWm

AstoDIM for autonomous dimming with five independent levels

Smart control management system

Luminaire Flux2600-16000lmOptions

Photocell

Surge protection device(up to 20KV)

0.5m External cable( other length upon request)

Smart control device

Luminaire efficacy110-140lm/W
CCT

4000K

( 3000K /5000K /5700K upon request)

CRI

>70

>80(upon request)

Lifetime100,000 HoursMaterials

Housing: ADC12 die-cast aluminum

Cover: Toughened Glass

Srews: 304 stainless srews

Operating Temperature range-30 to 45 ℃ColorGrey/Black/White

Date Download

SL58.pdf
