 LED Stadium High Mast Light 200W-1500W
 LED Stadium High Mast Light 200W-1500W  LED Stadium High Mast Light 200W-1500W  LED Stadium High Mast Light 200W-1500W  LED Stadium High Mast Light 200W-1500W  LED Stadium High Mast Light 200W-1500W

LED Stadium High Mast Light 200W-1500W

Product Tags :
Product Attributes :

●   190,000Lm(190Lm/W);

●   TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved;

●   The lamp efficiency reaches 180Lm/W, with higher brightness and less energy consumption;

●   Slim Plus LED high mast light is made of sturdy foldable aluminum fin module shell and heavy-duty anti-corrosion surface treatment.

Product Description

Power1000W
Luminous Flux(±3%)180,000 Lumens(180Lm/W±3%)190,000 Lumens(190Lm/W±3%)
Protection levelIP66, IK10
Power Factor>0.95
Weight25kg
Wind rating51.0-56.0m/s
Driver TypeMeanwell 5*ELGC-300-H-A
Light SourceLumileds 5050
Input Voltage100-277 VAC
CCT4000K 5000K
CRIRa70 (Ra80, Ra90 optional)
Life TimeL70/B10 >50,000hours
DimmableDimmable and Non-dimmable
Warranty5 Years / 7 years extended warranty available
Beam Angle10 / 20 / 40/ 60 / 90 degree/ TypeIV/ 135*60 degree(P50)
CertificationTUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK10, Salt Spray test approved




1.High Efficiency

Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 190Lm/W. Save more energy consumption

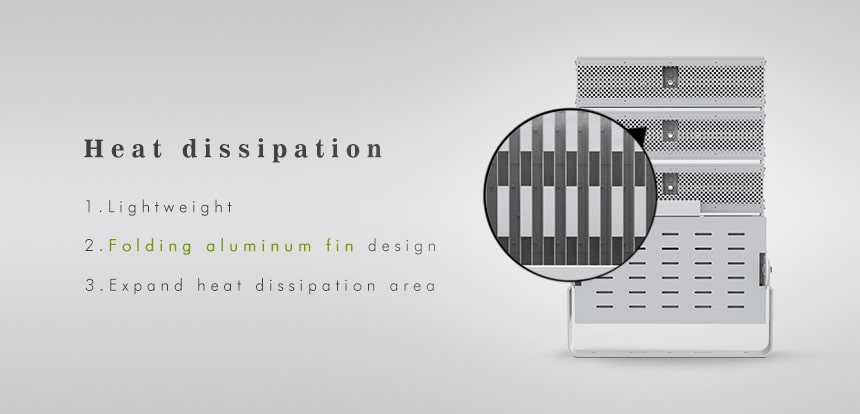

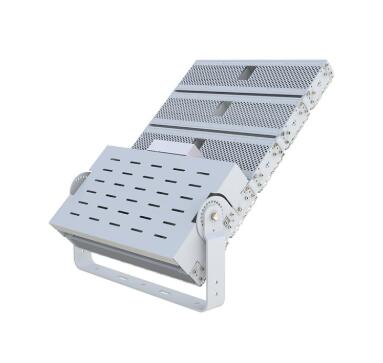

2.Heat dissipation

Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.


3.Waterproof IP66

Waterproof IP66, safer for outdoor use.

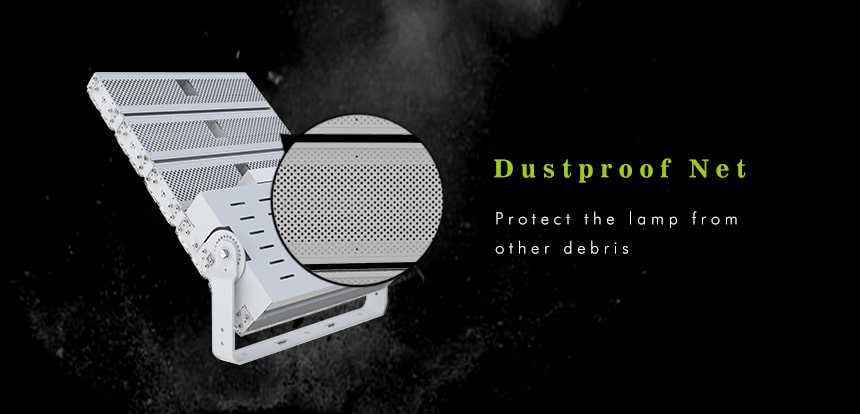

4.Dustproof net

protect the lamp from other debris.

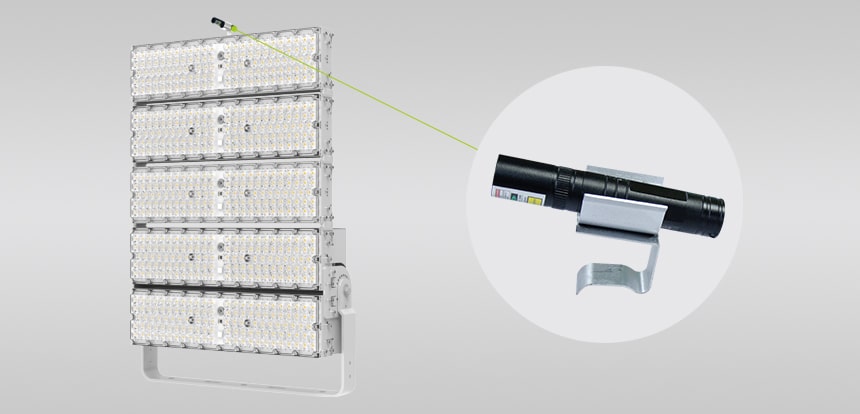

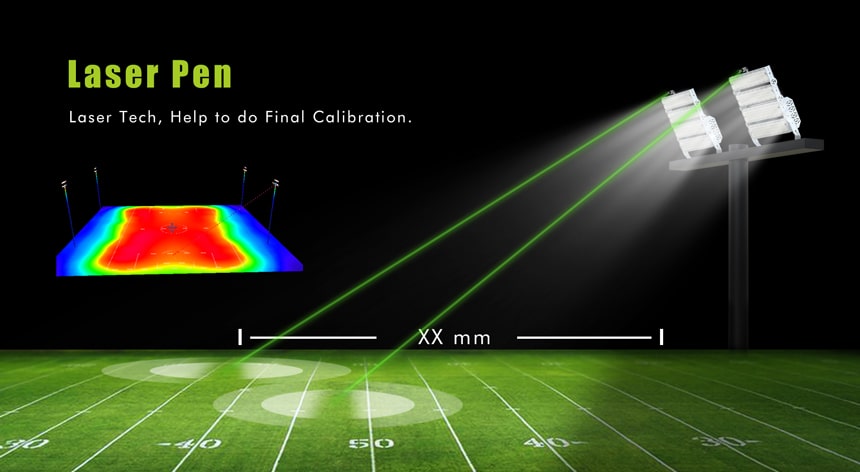

5.Laser pointer calibration

Laser Tech, help to do final calibration.

It is more convenient to control the illumination direction of the lamp during installation.

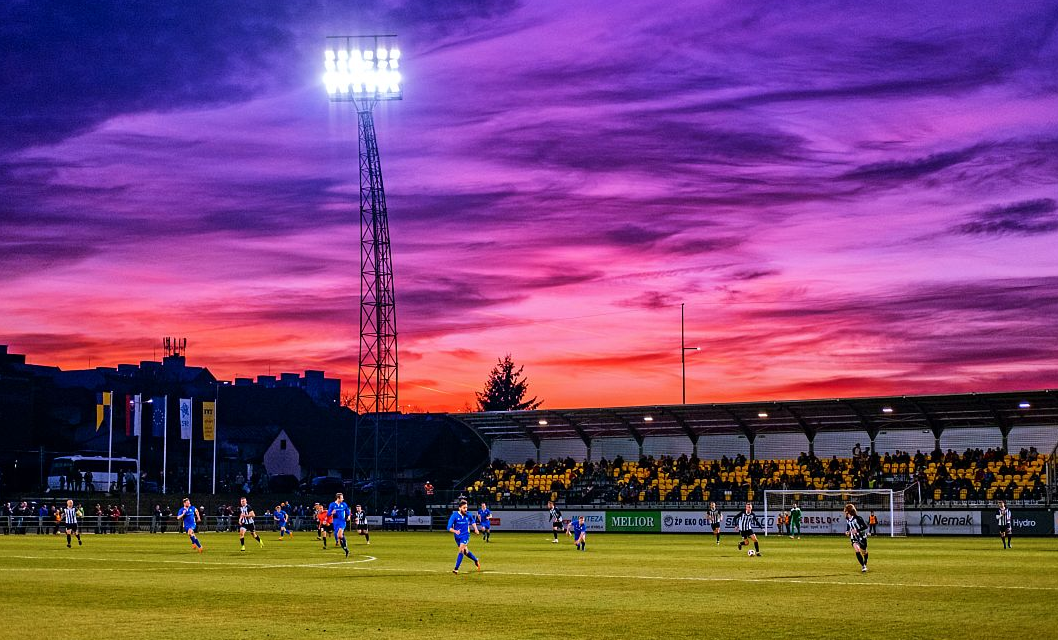

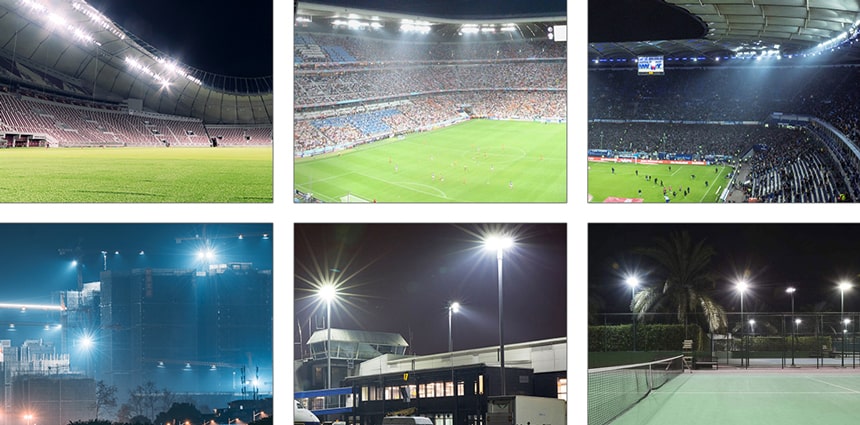

Applications



stadium light.png



Download Spec sheet

LSHM-100W-120W.pdf

LSHM-200W-240W.pdf

LSHM-300W.pdf

LSHM-600W-720W.pdf

LSHM-B400W-B480W.pdf

LSHM-B600W-B720W.pdf

LSHM-B800W-B960W.pdf

LSHM-B1000W-B1200W.pdf

LSHM-B1440W.pdf

LSHM-400W-480W.pdf
