Linear high bay light
Linear high bay light Linear high bay light Linear high bay light Linear high bay light Linear high bay light

Linear high bay light

Product Tags :
Product Attributes :

Using high brightness of original packed Philips SMD 3030 chip which achieves 130lm/w

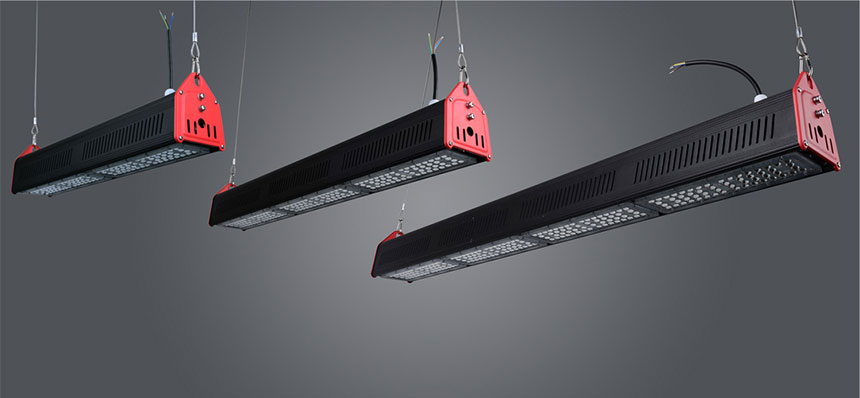

The lights are attractive black extruded aluminum fixtures with red end caps. IP65 rated for outdoor use.

Symmetrical Angle: 30 / 60 / 90 (degrees)

Polarization Angle : 30*70 / 60*90 / 60*120 / 70*140 (degrees)

Chain hanging style and Ceiling/Wall Mount(rotatable).

No spot, no black area, long life span and less brightness decay.

Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 95%.

No magnetic disturbance influence and CE RoHS ETL DLC standard compliant.

No UV and near-IR radiation in the light beam.

5 year warranty

Product Description


Specifications


Model

LSLHBL


Power Factor>0.95
Wattage50W-240WCap TypeBase Options:US,Europe,UK,Australia plug
Luminous Flux130Lm/wOptical lensSymmetrical Angle: 30 / 60 / 90 (degrees)   Polarization Angle : 30*70/  60*90/  60*120 /  70*140 (degrees)
Light SourcePhilips SMD 3030ConstructionRetrofit fin aluminum+stainless steel
Driver PowerMeanwell /SOSENInstallation MethodChain hanging style and Ceiling/Wall Mount(rotatable)
CRI

>80

IP RatingIP65
Equivalent

300W metal halide / HID High Bay lamp Equivalent

Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
CCT3000K/4000-4500K/5000-5700K/6000-6500KWarranty5 year Warranty
Input Voltage

180-277VAC

100-277VAC

Rated Lifespan50,000+ hours


Specification Sheet Download

LSLHBL-100W.pdf

LSLHBL-200W-A.pdf

LSLHBL-150W-A.pdf
